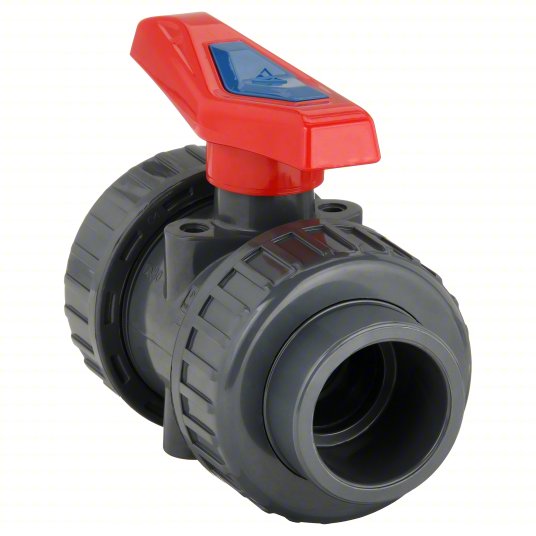

This 1-1/2 inch PVC ball valve features a two-piece, straight-body design with socket and NPT female connections, built for Schedule 80 piping. Engineered for durability and chemical resistance, it includes a non-vented standard port and blowout-resistant stem for reliable operation up to 225 psi.
-
Valve Type: PVC, Two-Piece Construction, Straight Body
-
Port Style: Standard, Non-Vented
-
Nominal Size: 1-1/2 inch
-
Connection Side 1: Socket, Female, 1-1/2 inch
-
Connection Side 2: NPT, Female, 1-1/2 inch
-
Pipe Compatibility: Schedule 80
-
Pressure Rating: 225 psi (CWP)
-
Temperature Range: 32°F to 140°F
-
Stem Type: Blowout Resistant
-
Ball & Stem Material: PVC
-
Seat & Seal Materials: PTFE (seat), EPDM (seal)
-
Handle: Red ABS Lever, 5.62 in length, 3.7 in height
-
Ball Opening: 1.49 inch
-
Certifications: NSF 61, ASTM F1970, NSF 372
-
Other Specs: Gray body, 6.92 in overall length, not cleaned/bagged, not 3-A compliant
-
Warranty: 1 year
